How Context Diagrams Build a Scope Baseline in Software Requirements
Published by Pavel Nakonechnyy on in Business Analysis.Context diagrams are often dismissed as unnecessary or overly simplistic by technical teams. However, in the complex and often chaotic world of software development, few things are as important and challenging as establishing a shared understanding of what needs to be built. Misinterpreted requirements are the primary source of project failure, costing billions in rework, missed deadlines, and frustrated stakeholders. Amidst a sea of user stories, functional specifications, and wireframes, one deceptively simple tool stands out as a foundational anchor for clarity: the Context Diagram. It serves as the entry point for understanding the solution and is accessible to anyone, technical or not.
At its core, a context diagram is a visual model that defines the boundaries of a system. It answers the most fundamental questions at the outset of a project: What is the system? and Who and what does it interact with?
It is the highest level view in a suite of modeling techniques. In a single graphic, it depicts the entire system as a single process (a circle or rectangle) at the center, surrounded by its external entities—the actors (or terminators). These can be people (e.g., “Customer,” “Admin”), other software systems (e.g., “Payment Gateway,” “Legacy CRM”), or hardware devices (e.g., “IoT Sensor,” “Printer”). The lines connecting the central system to these entities represent the key data flows or interactions between them.
1️⃣ Context Diagram in the Project Kickoff.
Context Diagrams pivot the discussion to the scope of the system, without diving into granular features. Because it can be created quickly, often within a single workshop, it is the perfect artifact for the initial project kickoff, allowing business stakeholders, subject matter experts, and the development team to point at a single diagram and say, “Yes, this is what we’re talking about.” It prevents the classic pitfall of discovering mid-project that the development team was building an “online store” while the business expected an “e-commerce platform with integrated inventory management.”
2️⃣ Context Diagram highlights interfaces and integrations.
By forcing the team to explicitly name all external entities, the diagram ensures no critical user role or system dependency is forgotten. The line labeled “Sends Order” to the “Payment Processor” immediately flags an integration requirement and a potential risk area. This early identification of external interfaces is crucial for planning API development, security protocols, and compliance needs.
3️⃣ Context Diagram is a perfect communication tool.
On top of that, context diagrams are universally accessible. They require no knowledge of UML or technical jargon to understand. This makes them a powerful communication tool to bridge the gap between non-technical stakeholders and engineers. Discussions around the diagram can surface assumptions, reveal hidden requirements, and align everyone’s mental model. A product owner can point to the “Marketing Email System” and ask, “Should the system also send a welcome email?” instantly expanding the known requirements.
4️⃣ Context Diagram is a baseline model.
The context diagram is the root from which more detailed models grow. It sets the stage for use case diagrams (by identifying actors), data flow diagrams (by defining Level 0), and even influences architectural decisions. When the team drills down into user stories for the “Customer” actor, they always have the big-picture context of that actor’s relationship to the whole system.
5️⃣ Context Diagram helps fight scope creep.
The diagram acts as a visual contract for scope. When a new feature request arises, a simple test can be applied: “Does this change the context diagram?” If the new feature requires a new external entity or a fundamentally new data flow to an existing one, it is a major scope addition that requires re-negotiation of time and budget. If it fits within the existing flows and boundaries, it is an internal elaboration.
💬 Karl Wiegers, a renowned author on requirements engineering, in his book Software Requirements delegates a whole paragraph to the Context Diagram: ‘The context diagram is the top level in a data flow diagram developed according to the principles of structured analysis (Robertson and Robertson 1994), but it’s a useful model for all projects.”

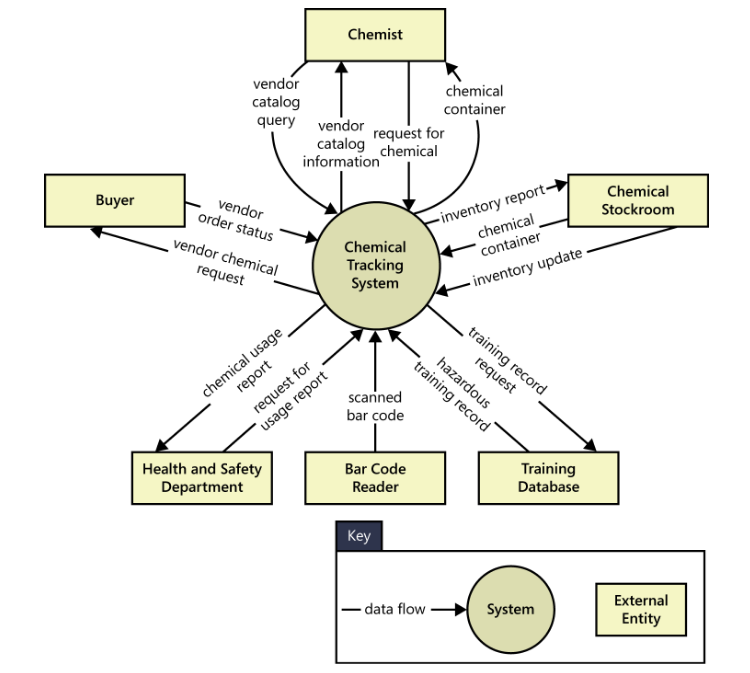

🔥 A Practical Example: Chemical Tracking System
Without a Context Diagram: Vague discussions about ‘a system where chemists process buyer requests, which must be validated against stock levels, training records, and health & safety regulations.
With a Context Diagram:
-
System in Scope: Chemical Tracking System
-
External Entities: Chemist, Buyer, Chemical Stockroom, Training Database, Bar Code Reader, Health and Safety Department.
-
Key Data Flows: “vendor catalog query”, “training record request”, “vendor order status”, etc.
Instantly, the scope, key users, and major integrations are clear to all. One might expect to see chemical vendors shown as an external entity in this diagram. After all, the company will route orders to vendors for fulfillment, the vendors will send chemical containers and invoices, and purchasing department will pay the vendors. However, those processes take place outside the scope of the Chemical Tracking System. Their absence from the context diagram makes it clear that this system is not directly involved in placing orders with the vendors, receiving the products, or paying the bills.
🤝 Best Practices for Effective Context Diagrams
1️⃣ Keep it Simple: The goal is clarity, not complexity. Avoid showing internal processes or data stores.
2️⃣ Focus on Flows, not Control: Show what information is exchanged (e.g., “Payment Details”), not how or when.
3️⃣ Use Consistent, Meaningful Names: Entities should be noun phrases (e.g., “Accounting Department”), flows should be labeled with the data or event passed.
4️⃣ Validate with Stakeholders: Walk through it with each user group to ensure their world is accurately represented.
5️⃣ Revisit and revise the diagram as fundamental project scope agreements are made.
In the meticulous craft of defining software requirements, the context diagram is the master blueprint. By investing the short time it takes to create and socialize one, teams can prevent countless future misunderstandings, establish a clear perimeter for their work, and ensure that every subsequent requirement, user story, and line of code is built upon a foundation of shared understanding. It is, in every sense, the first and most important map for the journey ahead.
